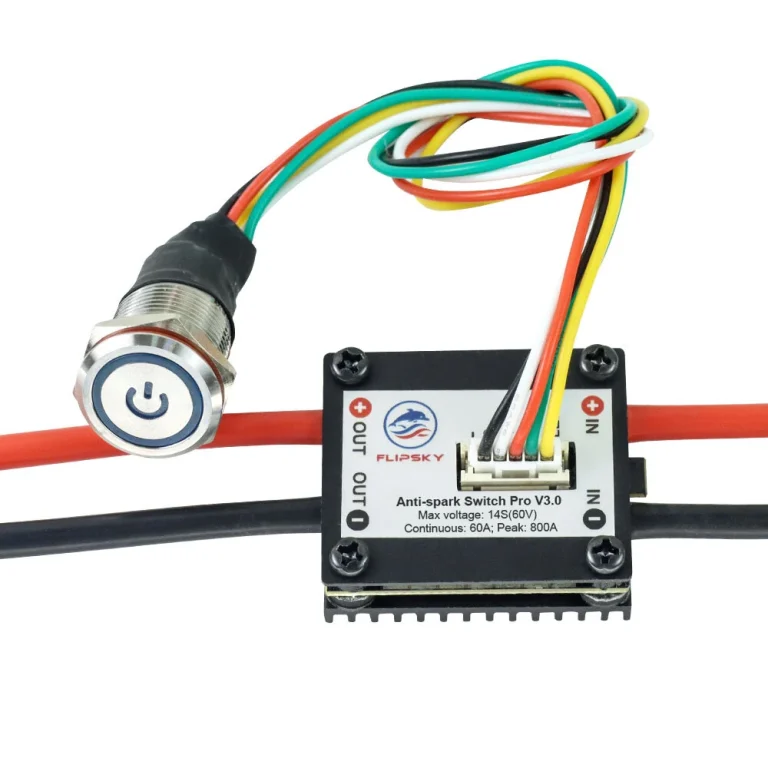

Flipsky Antispark Switch Pro with Aluminum PCB V3.0 for Electric Skateboard /EBike /Scooter/Robots RC Car Accessories
No Reason Returns
7 Days Missing/Wrong Items Guarantee
Secure payments and fast deliveries
Description: Item
Item Name:Anti spark switch pro
Material:Metal
Color:Black
Product Size:About 40*33*16.8mm
Compatible Model:Electric Skateboard /Ebike/ Scooter/Robots RC Car Vehicles Models Spec: V3.0
Mosfets:HYG015N10NS1TALED
Button Diameter:16mm
Voltage Range:3S-14S (12V-60V)
Max Current:200A(It is better to increase bigger heat sink)
Continuous Current:60ABurst Current 800A(theoretical current)PCB
Thickness:6 layer*3oz copper=18oz copperPro V3.0 Dimensions(with heatsink and heat shrink):42.2mm*33mm*26.6mm(12AWG Wire)With Aluminum PCB/case V3.0 Dimensions:72mm*37mm*16.2mm(8AWG Wire)
Reminder: The the LED button is defaultly inserted in the switch in shipping status, DO NOT power on switch without the LED button connected.Make sure the switch is off before applying power.
Package Included: 1X Antispark Switch Pro
| Weight | 0.08 kg |
|---|---|
