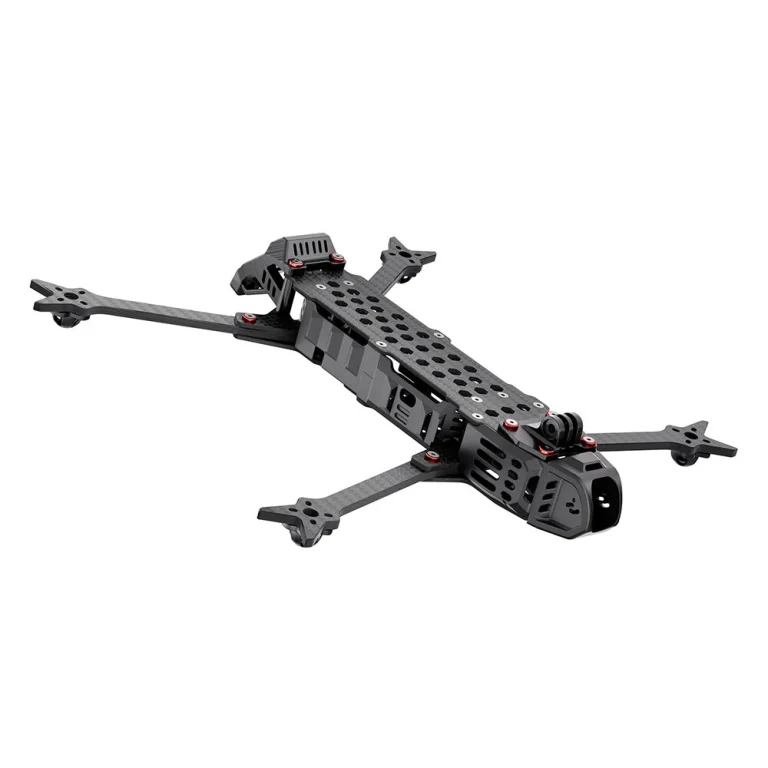

GEPRC GEP LC75 V3 342mm Wheelbase 6mm Arm 7.5 Inch Long Range Frame for DIY RC Drone FPV Racing

Specification: Brand:
Geprc Model: LC75 V3
Size: 7.5 inch
Wheelbase: 342mm Top plate: 2.5mm Bottom plate: 3.0mm Arm plate: 6.0mm FC mounting hole: 30.5mm*30.5mm VTX mounting hole:20mm*20mm / 25.5mm*25.5mm Motor mounting hole: 16mm*16mm / 19mm*19mm Camera mounting hole: 19mm / 20mm Recommended propeller size: 7-7.5inch Weight: 266g
Feature: Adopt a novel appearance design, strengthen the fuselage structure, and reduce the impact of fuselage vibration on the gyroscope sampling data. The fuselage adds protective side panels for a more technological appearance and to protect the electronic control system from sand and dust pollution. The integrated design of the battery plug and the body simplifies the power-on operation, simplicity and beauty. Perfect match for 7-inch or 7.5-inch propellers The Crocodile75 V3 frame has a lengthier fuselage, can be mounted with Lipo 6S 3300mah-4500mah or Lion 6S 6000mah battery for flight. Package Includes: Carbon plate list: 1 x GEP-LC75 V3 top plate 1 x GEP-LC75 V3 bottom plate 4 x GEP-LC75 V3 arms plate 1 x GEP-LC75 V3 front splint plate 1 x GEP-LC75 V3 front splint plate Accessories: 1 x Header printed parts 1 x Tail printed parts 1 x GP camera base 4 x Motor damping pad 1 x Nylon front side plate (Pair) 1 x Nylon Rear side plate (Pair)(for DJI O3 version) 1 x Nylon Rear side plate (Pair) (universal version) 1 x XT60EW-M plug 2 x Rubber elastic anti-slip straps 20*250mm 4 x Motor wire hub 60mm*10mm Screw kits: 4 x M3*5*30 mesh aluminum columns 4 x M3*5*21.5 mesh aluminum columns 10 x M3 Countersunk head Gaskets wine red 6 x M3 pressed Rivet nuts 8 x M3*8 shock absorbing balls 10 x countersunk hexagon socket screws M3*8 4 x countersunk hexagon socket screws M3*12 4 x Hexagon socket screws with semicircular head M3*8 16 x Hexagon socket screws with semi-round head M3*11 8 x semi-round head hexagon socket screws M3*16 4 x countersunk hexagon socket screws M3*16 4 x Hexagon socket screws with semi-round head M3*25 6 x M3 aluminum alloy hexagonal lock nuts 2 x Hexagon socket screws with half round head M2*6 4 x round head hex socket screws with pad M2*4 4 xSilicone gasket for DJI O3 Air Unit 6 x Cup-head hex socket screws M1.6*12 4 x Hexagon socket screws with half round head M2*23 4 x Self-tightening nuts M2 4 x Nylon columns M2*5 4 x Hexagon socket screws with half round head _ Black Nickel plated M2*7 4 x M2 Nylon nuts 8 x Hexagon socket screws with semicircular head M3*6 4 x black mesh M3*13 aluminum columns
