SEQURE 2.4GHz Dual RX True Diversity Dual Antenna Long Range High Refresh Rate Receiver for FPV Racing Drone Fixed Wing

SEQURE 2.4GHz Dual RX True Diversity Dual Antenna Long Range High Refresh Rate Receiver for FPV Racing Drone Fixed Wing
Features: (1) High-performance ESP32-PICO-D4 master control, dual-frequency SX1281 chip, true diversity dual antenna receiver. (2) High-frequency anti-interference, 2.4GHz frequency, strong signal penetration. (3) High-speed data transmission, support F1000Hz and F500Hz ultra-high refresh rates, meet the low latency requirements of racing players. (4) Onboard temperature-compensated crystal oscillator (TCXO), refuses ambient temperature to affect flight, maintains stable operation in high or cold environments, making flight safer. (5) Integrated with dual-channel high-power PA+LNA low-noise amplifier and 100mW (20dBm)*2 telemetry return, the return of flight data is more stable. (6) Onboard RGB color indicator, quickly identify different working status. (7) Support SH1.0-4P socket and 2.54-4P pad, two connection methods to meet various scenarios.
Description:
Model: ELRS 2.4GHz Dual RX
Factory Firmware: SEQURE 2.4GHz Dual RX_3.4.0 MCU: ESP32-PICO-D4 RF
Chip: SX1281 Crystal
Oscillator Type: Temperature Compensated Crystal Oscillator TCXO PA Power (Telemetry Power): 100mW 20dBm * 2 LNA: YES Indicator Light: Colorful RGB Light
Frequency Band: 2.4GHz ISM
Protocol: CRSF RF
Mode: Dual /True Diversity/True diversity dual antenna
Antenna Interface: Ipex1
Receiver Interface: SH1.0-4P connector, 2.54-4P pad Working voltage: 5V Weight: 1.5g
Size: 23*12.8*5mm
Package Size: 150*100*15mm
Packing Weight: 11.5g

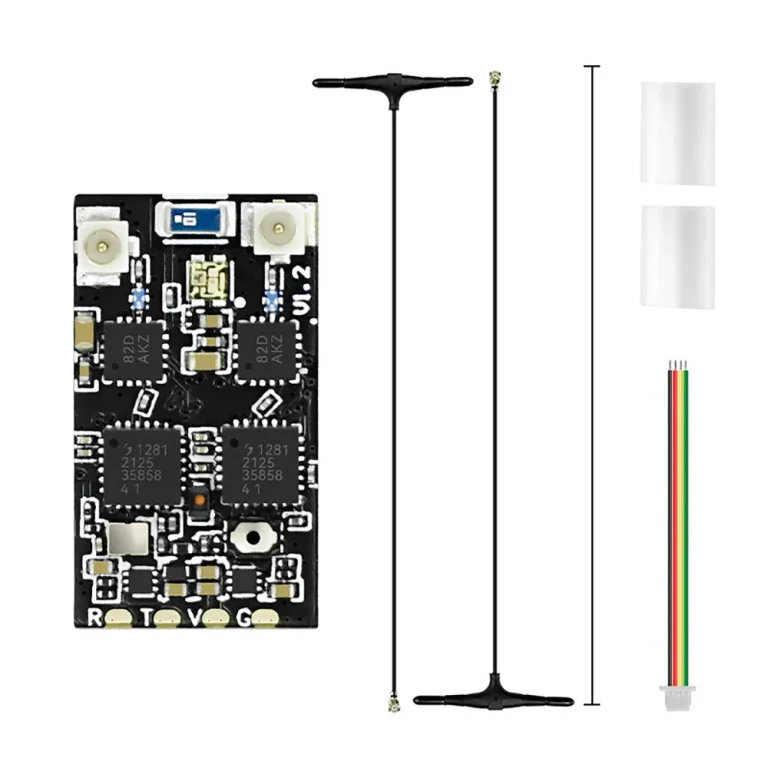

Package included: 1x SEQURE ELRS 2.4GHz Dual RX
2x 2.4G antenna2
1x 30AWG 100mm single-end SH1.0-4P cable
2x 12*30mm heat shrink tube
